CUT
the irresistibly beautiful line

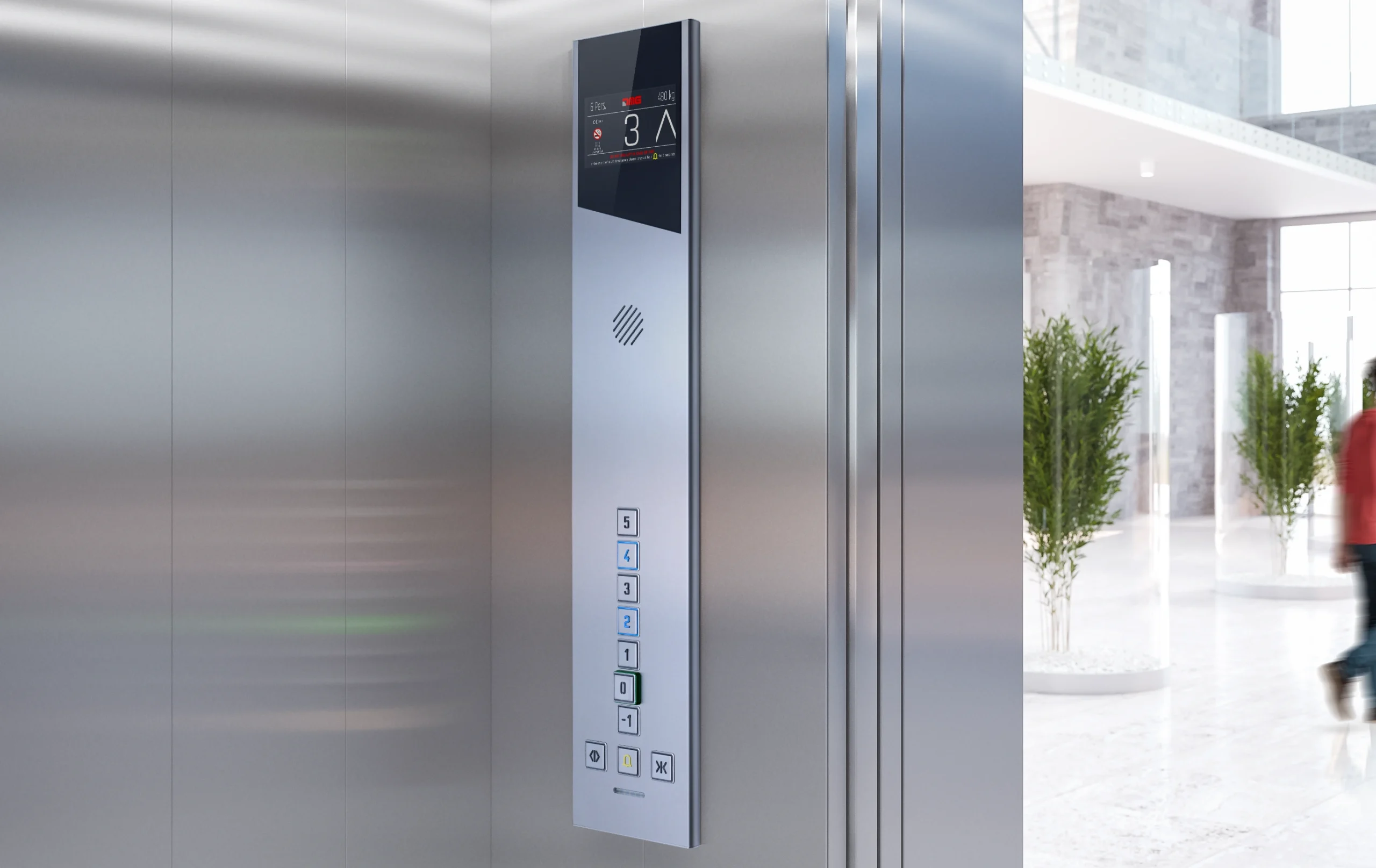

CUT surface mounted panels with shaped polycarbonate screen insert
CUT at a glance
→ Surface mounted panels with shaped screen insert
→ Scotch-brite st/steel surface mount fixture
→ New fixing method snapped on sub-plate (LOP) or by anchoring with two side hinges (COP)
→ COP Long, COP short and LOP (more sizes)
→ Flat Scotch Brite stainless steel top/bottom endings (1,5mm)

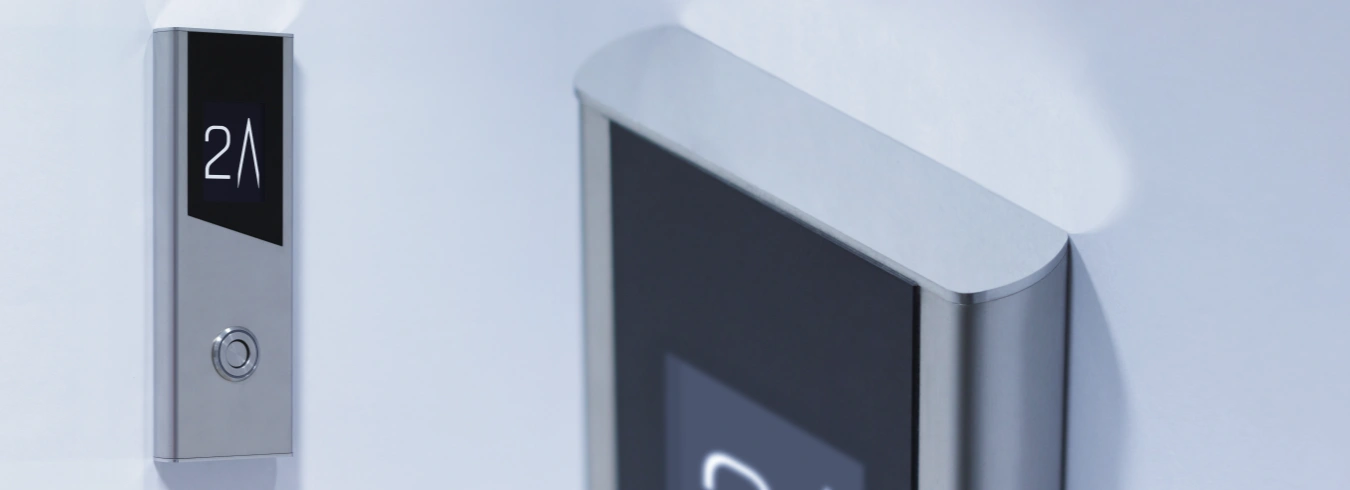

SURFACE MOUNTING
The CUT plates are also straightforward to install, thanks to a new and quick fixing method with sub-plate. Once the sub-plate has been fixed on the wall, the landing panels can be snapped in and fixed with a non visible screw, whereas car panels are engaged to two side hinges and then fixed with two hidden screws. Hinges allow side opening for comfortable and easy maintenance/inspection.

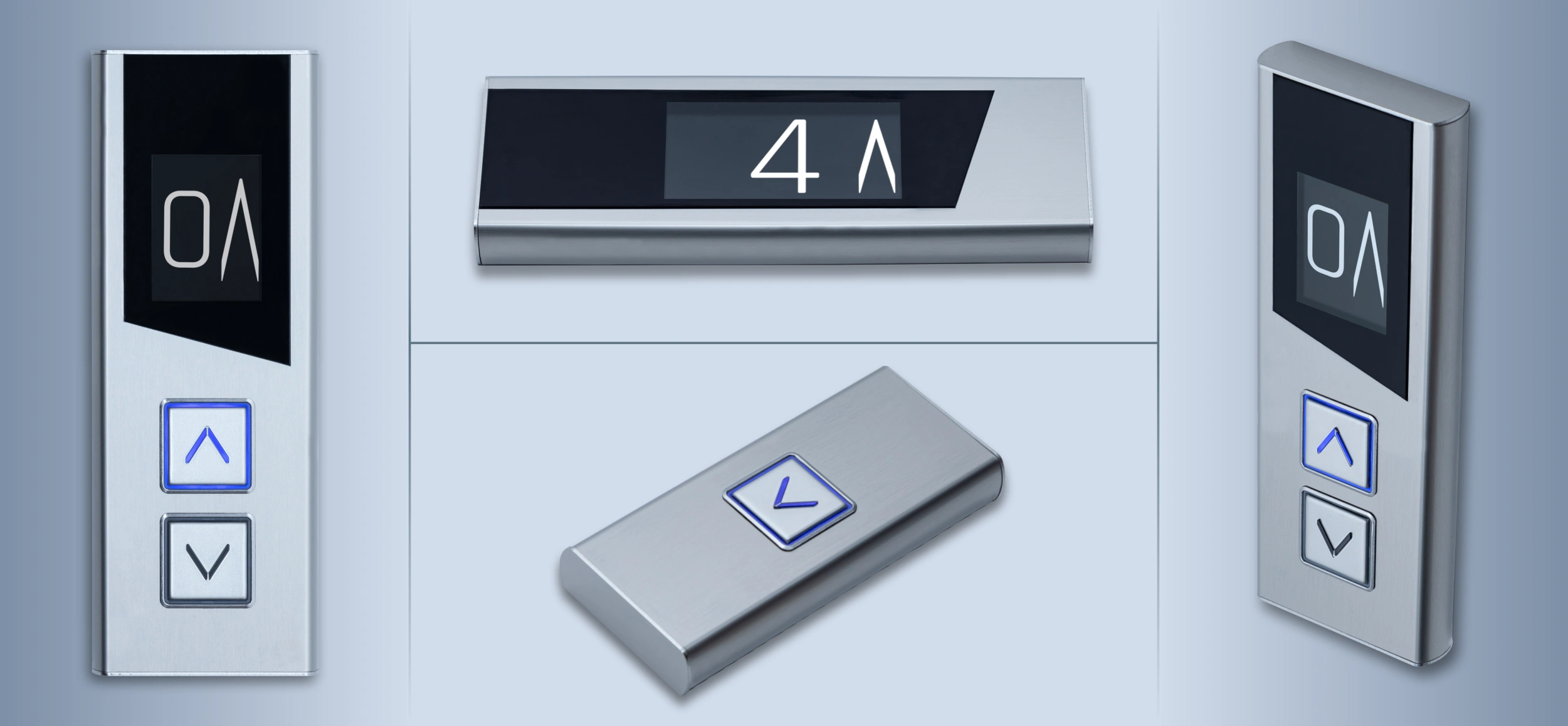

Floor panels
Unique style many sizes:
CUT floor panels are available width 90 and a vast range of lengths (225-500), new fixing method snapped on sub-plate.
Car panels
CUT car panels are available in two widths 160 / 200 and a vast range of lengths (600-1200), new fixing method by anchoring with two side hinges.

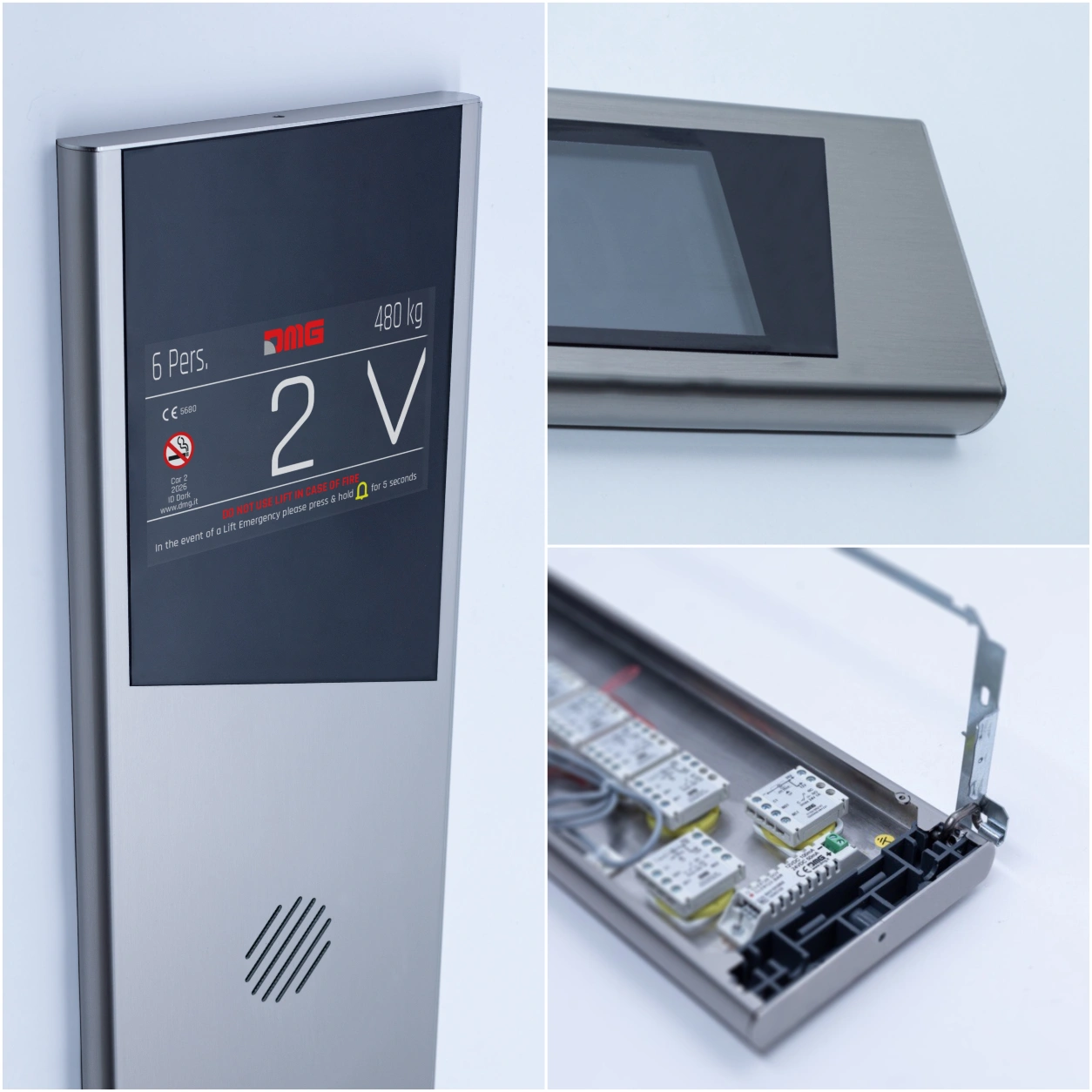

A closer look
Shaped screen insert customizable
Design featuring smooth rounded sides and stainless steel flat top/bottom endings
Car panels are engaged to two side hinges and then fixed with a hidden screw
