SMART KEY PLUS
Safely manage access to private or restricted floors
Electronic key for lifts:
Safely manage access to private or restricted floors!
now from a cloud based APP
SMART KEY PLUS at a glance
Further to the features of our Smart Key:
Configure keys via Smartphone (iOS, Android), PC (Windows 10) and Web (Fusion Dashboard)
Easy managing of users for big buildings through a cloud based APP
The control unit is now separated from the plug and can be mounted max 4 meters away
Connect expansions up to 32 inputs/outputs for direct call activation or call button enabling
PARTS IDENTIFICATION, EASY-PEASY
The control unit (C) is now separated from the electronic key reader device (B).
All information (identification and functionality) related to the electronic keys associated with it are stored here.
It has a WiFi interface for local connectivity with Smartphones; it is used for the programmation, configuration and management of electronic keys (A) and related parameters associated with them.
It can manage up to 4 floors. Further 4 floors can be manged by adding an expansion module (D). A maximum of 7 expansion modules can be connected to serve a total of 32 floors.
NO TOUCH OPERATION
Keep authorized people safe by using the electronic key, which doesn’t require touching the elevator buttons.
Activate calls just placing the Smart Key into its control unit housing.
No more surface touching, no more risks!
VANDAL RESISTANT
Our electronic key is EN81-71 compliant. It is the perfect solution for elevators where you want to avoid damages caused by inappropriate use of buttons or even vandalism on elevator buttons.
SAFE ACCESS for offices, buildings, restricted areas or private residences
You are in control of who can access your restricted/protected areas or building.
Quick set up and configuration of up to 5 master keys and 500 users keys.
AN OPERATION MODE FOR EVERY NEED
Versatility and safety at your fingertips!
1. Direct call = astable mode (default from factory)
2. Button enabling = bistable mode
3. Constant pressure, man present

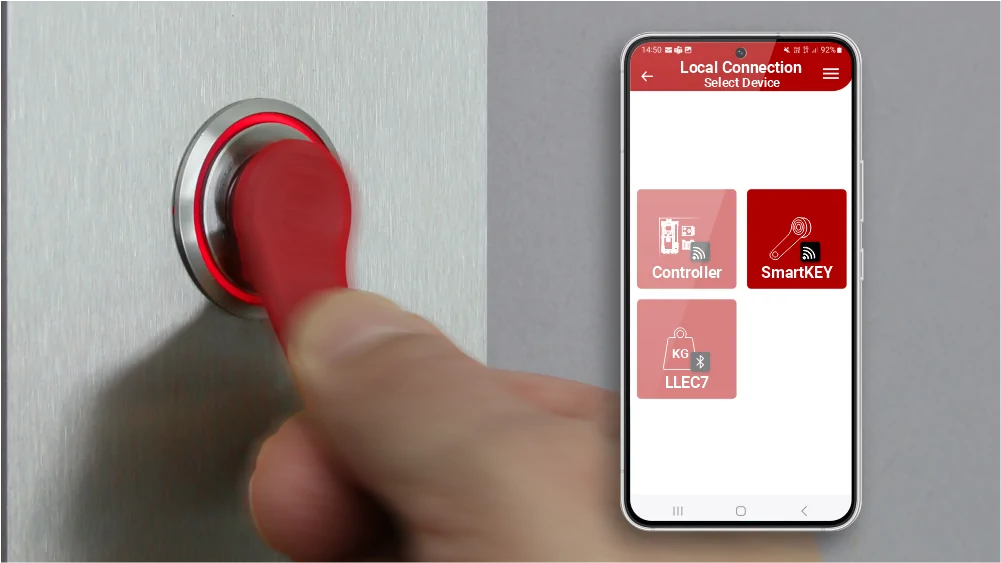

FEATURES AVAILABLE USING THE APP FUSION
The app FUSION is available free of charge for iOS, Android and Windows 10.
The device interacts with the user via WiFi connection (the main unit is provided with a WiFi interface)
After registering your unit in the FUSION Cloud, you’ll have acces to different features depending on the type of user (technician/building manager).
Technicians can:
update the main unit firmware
read the unit keys and their parameters in anonymous form (without personal data)
Building managers can:
update the main unit firmware
modify parameters of user keys already registered in the main unit
synch changes to the main unit and to the cloud
backup keys and configurations
restore backups previously filed
clone key and parameters set from a unit to another
check user registrations via web
