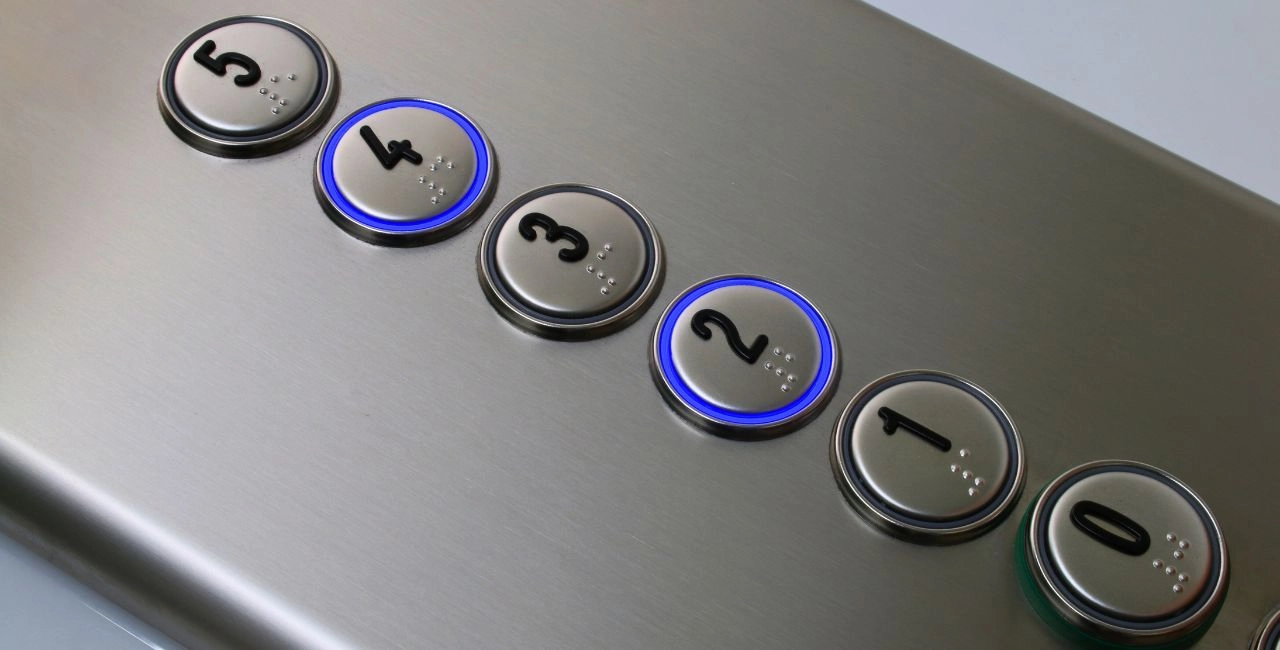

MACRO
the blockbuster all-purpose button by DMG
MACRO, the pushbutton featuring both
EN81-70 raised symbol and tactile Braille
MACRO AT A GLANCE
- 35mm or 32mm round button, both with symbol + Braille
- Compliant to new EN81-70:2021+A1:2022 color contrast requirement (LRV)
- Frontal mounting (no studs), fastening by jam-nut on 0,7mm to 5mm faceplates
- Domed pressel, made of anti-fingerprint shot-peen stainless steel
- Available in Standard st/steel, PVD-coated or Black finishes; Bronze available upon request
- Raised symbol with single illumination, dual light or twin light available only for the 35mm button
- IP51 protected
A CLOSER LOOK
ANTI FINGER-PRINT
ANTI FINGER-PRINT
Shot-peen stainless steel allows for less fingerprints on the button surface.
SMOOTH
ACTIVATION
SMOOTH
ACTIVATION
Activation is smooth and easy wherever you press your finger.
ILLUMI-NATION
ILLUMI-NATION
The button is available with SINGLE, DUAL or TWIN lighting.
TACTILE BRAILLE
TACTILE
BRAILLE
Tactile Braille is always present under the floor symbol in all MACRO buttons.
EN81-70:2021+A1:2022
Great contrast, better visibility
The EN81-70:2021+A1:2022 norm requires that luminance contrast between adjacent surfaces shall be evaluated in numerical light reflectance value (LRV).
We provide a black metal ring around the stainless steel MACRO button which grants luminance contrast to the surrounding faceplate. Or the BLACK MACRO is available for immediate contrast.
MOUNTING
Front
The MACRO button is front mounted and fits round-shaped 35mm cut outs.
The retaining ring is part of the button body and ensures optimal solidity.
(the picture shows a MACRO light signal available with a wide choice of symbols/words)
SINGLE, DUAL OR TWIN LIGHT
SINGLE LIGHT
Upon activation, the button halo lights up red or blue.
White illumination is also available on request for some pushbuttons.
DUAL LIGHT
Simbols are always white or green illumInated.
Upon activation, the button halo lights up while the symbol/number remains illuminated in white or green (the following combinations are available white-red, white-blue or green-red).
TWIN LIGHT
Twin light means that both the halo and the symbol of the button are permanently illuminated in WHITE.
Upon activation, the button lights up in RED or BLUE while the white light goes off.
TECHNICAL FEATURES
SIZE
Round Button
35mm
32mm
35mm
32mm
MATERIALS
• St/Steel
• bronze PVD upon request
• black PVD
• gold PVD (for alarm button)
• bronze PVD upon request
• black PVD
• gold PVD (for alarm button)
WIRING
• Screw terminals
• Screw terminals + acoustic feedback
• JST connector
• Screw terminals + acoustic feedback
• JST connector
CONTACTS
• 1C
• 2C
• 1C with acoustic feedback
• 2C
• 1C with acoustic feedback
ILLUMI
NATION
NATION
SINGLE LIGHT
red or blue
DUAL LIGHT
symbol white
halo red or blue
TWIN LIGHT
white/red or
white/blue
red or blue
DUAL LIGHT
symbol white
halo red or blue
TWIN LIGHT
white/red or
white/blue
POWER SUPPLY
• 24V
• 12/24V only single light
• 12/24V only single light
COM
PLIANCE
PLIANCE
• EN81-70
• EN81-70/2018
• IP51
• EN81-70/2018
• IP51
DIDO
Go to the datasheet on our technical support platform DIDO.
