BL

One button, many shapes

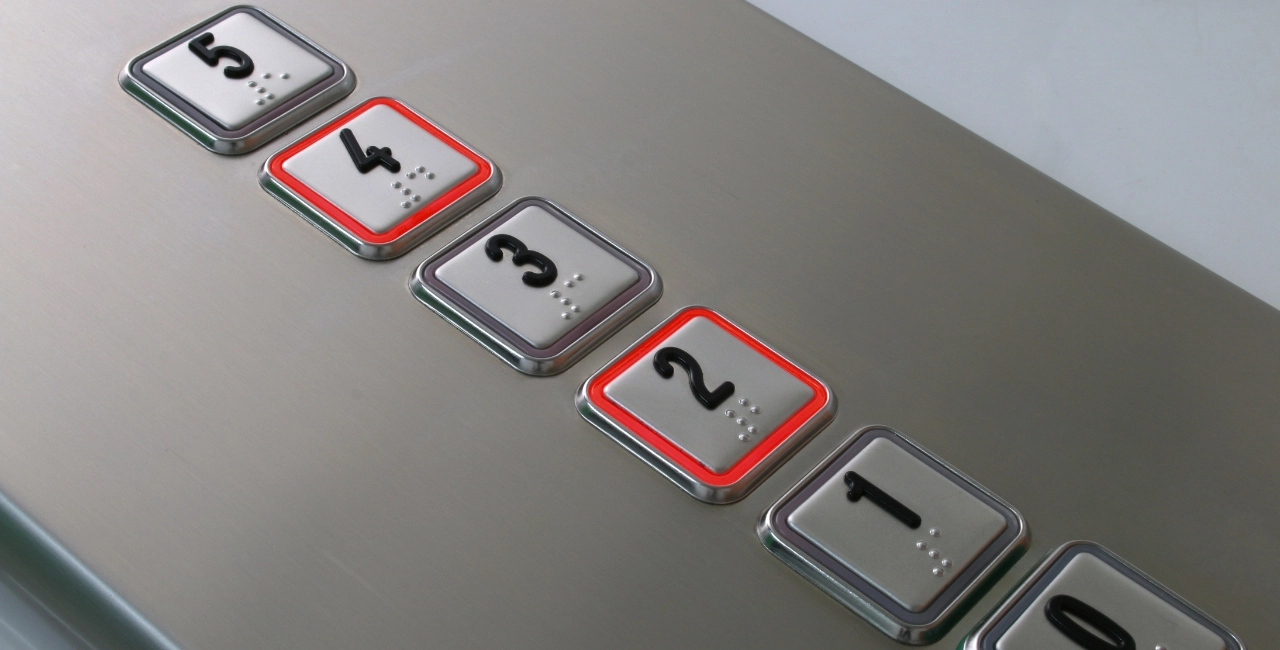

Round or square, BL is the basic solution for all purposes.

BL at a glance

EN 81-70 push-button with raised symbol and stainless steel available in different shapes.
Compliant to new EN81-70:2018 color contrast requirement (LRV).
Frontal mounting (no studs) with metal collar, fastening by jam-nut.
Pressel: polycarbonate with stainless steel finishes; thermoplastic tactile (raised) illuminated symbol(s).
Raised symbol with single, double or twin-light illumination (see details below).
IP51 (frontal and flush mounting).

GREAT CONTRAST, BETTER VISIBILITY

The EN81-70:2018 norm requires that luminance contrast between adjacent surfaces shall be evaluated in numerical light reflectance value (LRV).
The black metal ring added around BL frontal mount button provides enhanced luminance contrast to the surrounding faceplate.

BL-Q-Frontal-Quote
BL-S-Frontal-Quote

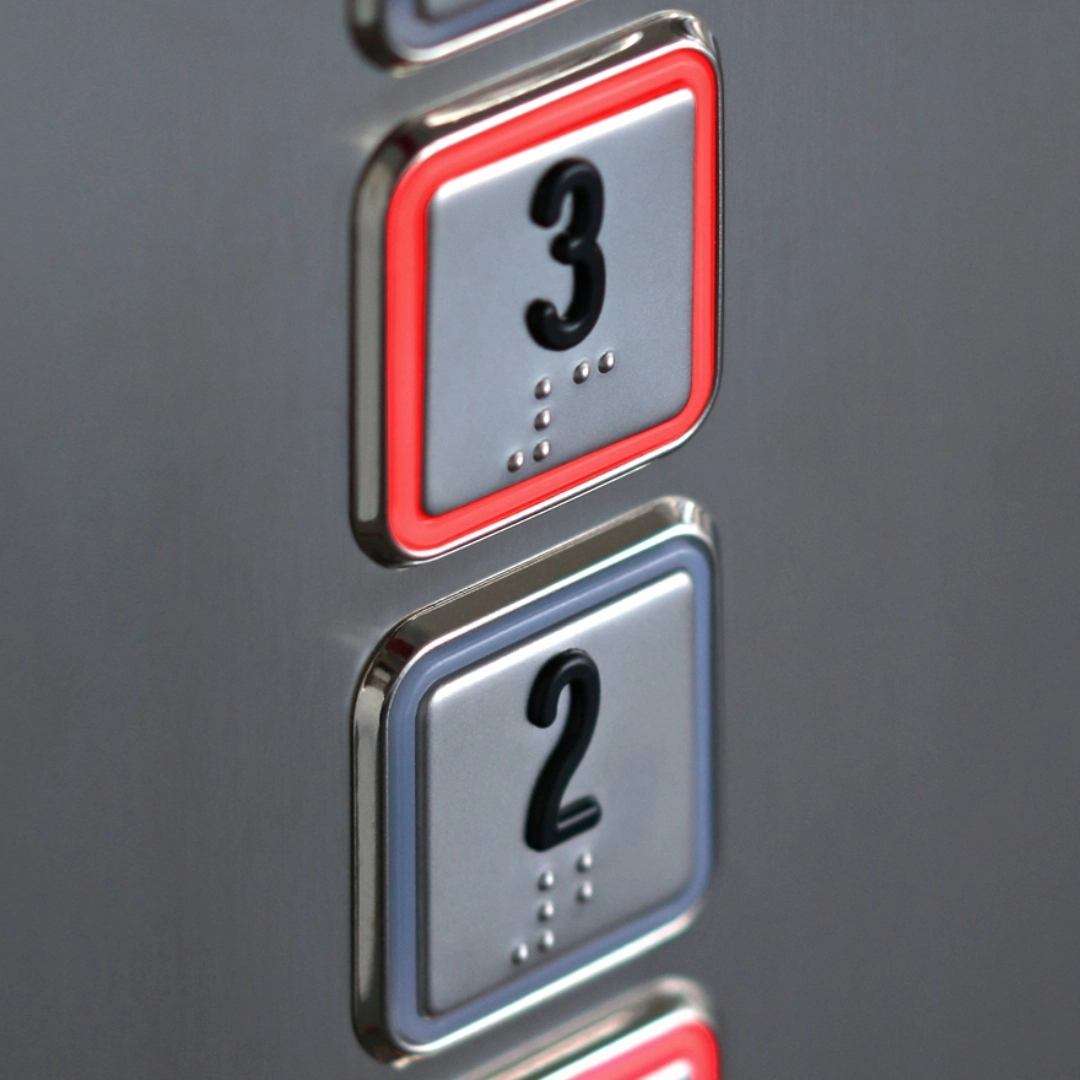

FRONTAL MOUNTING

The frontal mount version of the BL can be inserted in both round-shaped and square-shaped 30mm cut-outs.
The retaining ring is part of the button body and ensures optimal solidity.
The additional black metal collar can be added to achieve full compliance with the newest EN81-70:2018 norm.

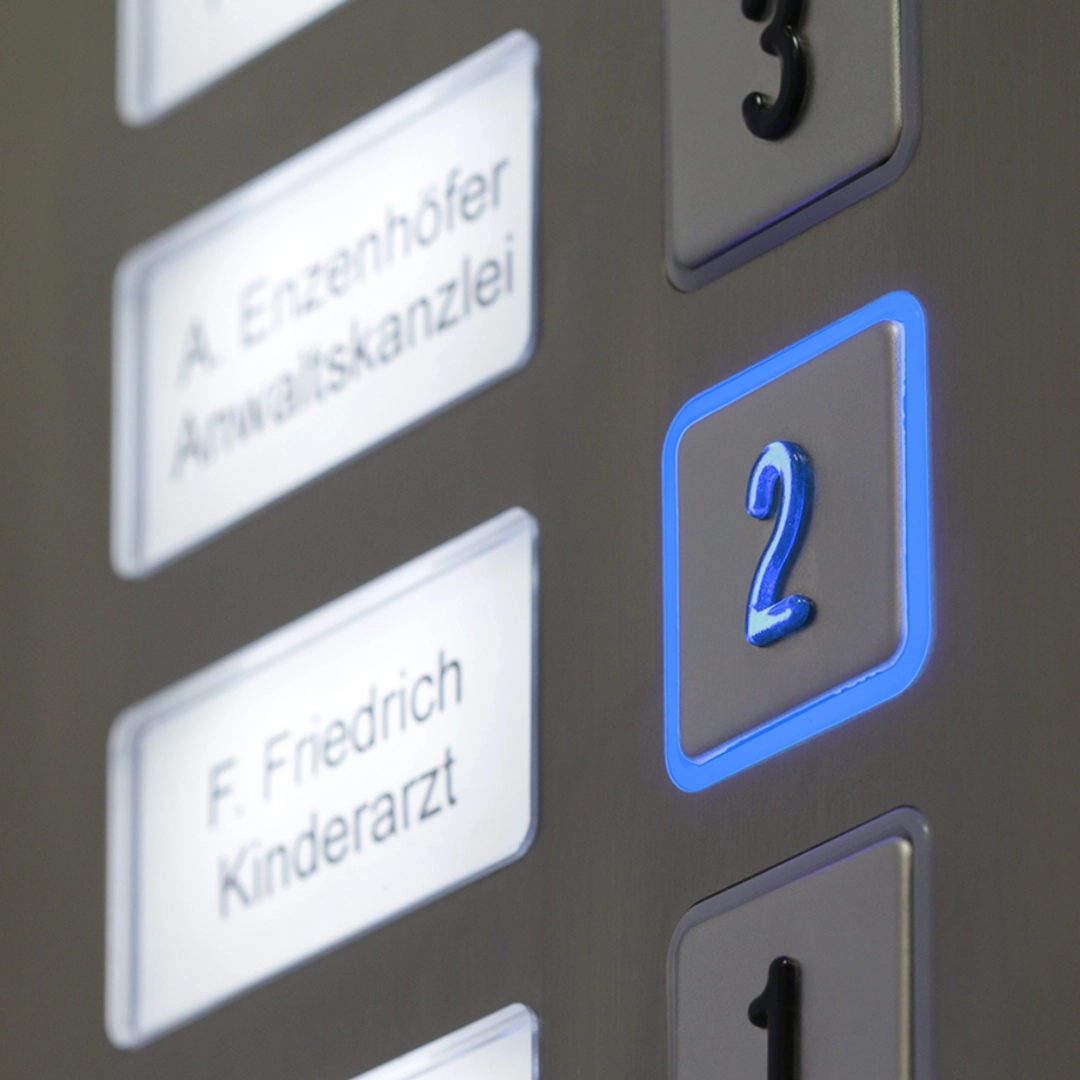

FLUSH MOUNTING

BL most stylish version fits into squared-shaped 30mm cut-outs.
The pushbutton is back mounted with studs and is beautifully flush with the face plate.
Compliance with the newest EN81-70:2018 norm with the twin-lighting option.

BL-Q-Flush-Quote
BL-S-Flush-Quote

SINGLE LIGHTING

Upon activation, both the raised symbol and the halo of the pushbutton light up in red or blue.
White illumination is also available on request for some pushbuttons.
By default, all DMG buttons are available primarily with this basic illumination pattern.

DOUBLE LIGHTING

Simbols are always white or green illuminated.
Upon activation, both the raised symbol and the halo of the pushbutton light up in white-red, white-blue or green-red.
By default, all DMG buttons are available primarily with this basic illumination pattern.

TWIN LIGHTING

DMG introduced the Twin-lighting solution as a way to enhance button visibility in darker cabins.
Twin lighting means that both the halo and the symbol of the button are permanently illuminated in WHITE.
Upon activation, the button lights up in RED or BLUE while the white light goes off.
This advanced illumination pattern is available for some DMG pushbuttons, including the BL.

WHICH ELECTRONICS?

Like all our pushbuttons, the BL can be matched to different contact modules:


Wire terminals contact module

Single Lighting
Dual Lighting

Good for all types of modernizations. Requires conventional wiring during installation.
If EN81-70 Beep is required, the additional PCB0BEEP module shall be added to the car panel and at each floor. Alternatively, the P8+BEEP contact module is suggested especially at floors.


JST connector
contact module

Best solution for pre-wired fixtures within the Pitagora 4.0 electric system.
A JST cable must be added to connect the push-button to the Pitagora 4.0 boards in the car (C40.COP14) and at each floor (C40.BDU).


Wire terminals
contact module + BEEP

Good for all types of modernizations requiring BEEP and new installations compliant to EN81-70.
Requires conventional wiring during installation.
The embedded beep device features +/-2dB BEEP signal when button is pressed.
