The display outside the box
Strikingly simple and modern, BANKSY is the new ultra-flat front-mounted display series for contemporary fixtures
PICK THE RIGHT BANKSY
BANKSY comes in 4 different models:
Ideal as hall position indicator – Fits 55x55mm cut-outs – Perfect retrofit for older DMG D1 series display

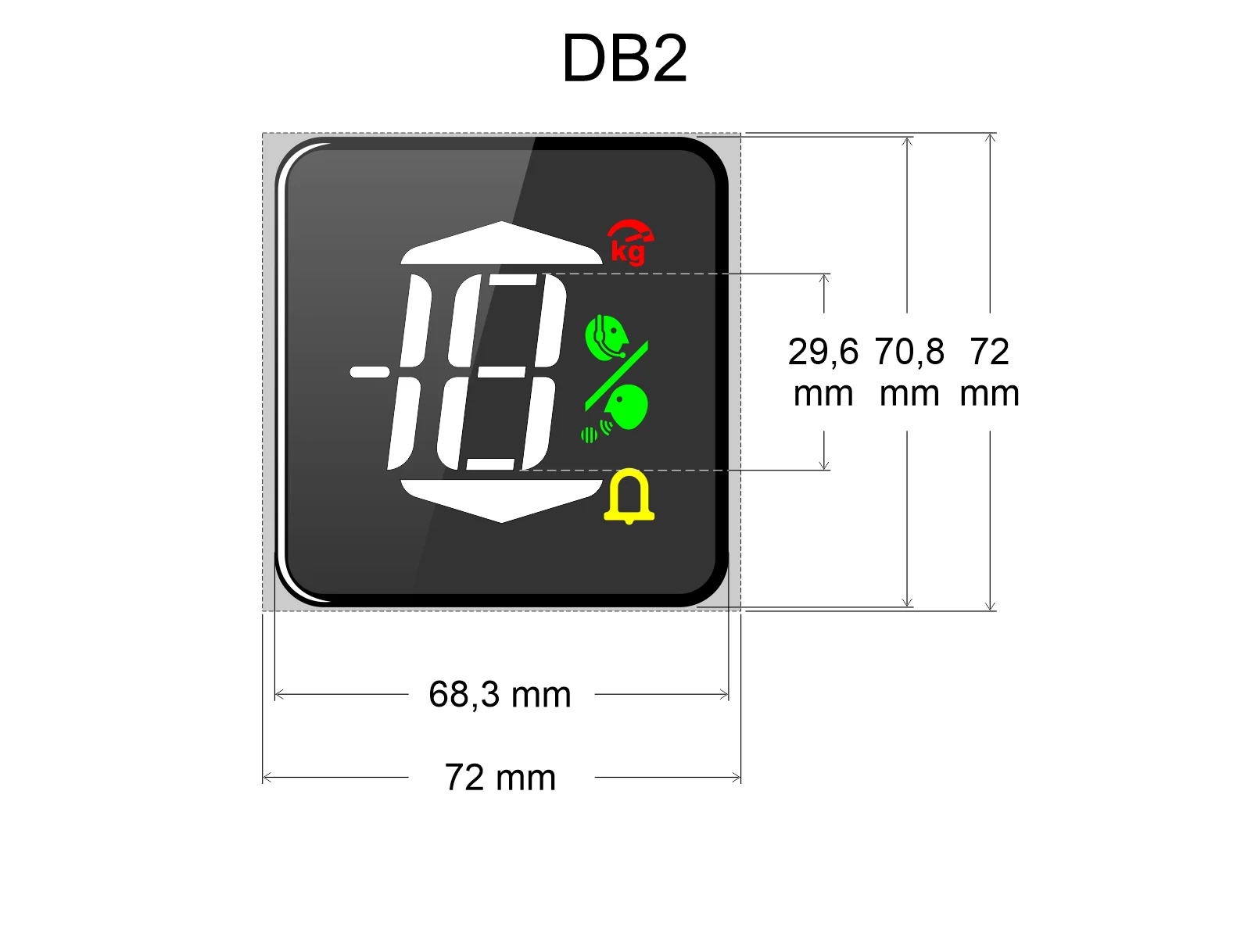

Larger version of the DB1 with 68mm x 71mm screen
Ideal as car position indicator – Suitable to replace DMG DZ3 front mounted displays (139mm x 77mm)
Framed version of the DB3 fitting a 79mm x 144mm cut-out
The BANKSY DB3 and DB4 can be completed with same sized capacity plates.
CTDB3 – 139mm x 77mm
CTDB4 – 144mm x 79mm
AT FLOOR OR IN THE CAR
The screen of the Banksy display can be provided with two different layouts depending on its destination:
For displays at floors: the screen is equipped with symbols such as Alarm bell, Car at floor (55×55 and 68×71 versions only), Out of service.
For displays in the lift car: the screen is equipped with typical EN81-70 symbols Alarm sent, Communication established, Overload.
RETROFITTING EXISTING DISPLAYS
The Banksy is designed to fit the cut-outs of some of DMG’s best-selling displays.
The DB1 can be used to retrofit the front-mounted, parallel versions of the DS and D13 position indicators manufactured by DMG since 2000. The new Banksy perfectly fits into the 54x54mm cut-out of the DS/D13 and the existing cables can be connected one by one to the terminals of the new display.
The DB2 and DB4 are suitable for retrofitting other displays on the market.
The DB3 can easily substitute the DMG’s Lagoon DZ3 LCD display in its front-mounted version.
Banksy DB1 retrofits the DS / D13 54x54mm displays
Banksy DB3 retrofits the 138x76mm DZ3 Lagoon
front mounted display
CONNECTION TO CONTROLLER
BANKSY displays are designed as multiparallel devices and can be connected to new and existing controllers in one of the following ways:
3 wires serial DMG: 3 terminals are available to display up to 29 floors (from -9 to 19)
1 line per floor: 11 terminals X01 to X11 are available for up to 11 floors, with the possibility to set the offset (from -3)
1 line per segment: 10 terminals X01 to X10 are available to display digits from -9 to 19
Gray / Binary: 6 terminals X01 to X06 are available to display up to 23 floors
In addition, 3 inputs with independent common (S1, S2 and S3) are available to handle service symbols, and 4 optoisolated inputs are there to handle UP and DOWN arrows.
