Sherman TouchLess

SHERMAN TOUCHLESS

FEATURING BUILT-IN INFRA-RED PROXIMITY SENSOR

The most iconic and ultra-strong push-button from DMG…now it’s also touch-less!

SHERMAN TOUCHLESS AT A GLANCE

Limits touched surfaces, protecting against viruses and bacteria
Mechanical activation also available if needed
Ideal for retrofit with DMG buttons
Frontal mounting, AISI 303 turned stainless steel button (Gold PVD also available)
Illumination white, LED 12/24V AC/DC, no illumination when not activated
Impact protection: IK07, Ingress protection: IP44

A CLOSER LOOK

AISI 303 turned stainless steel button (Gold PVD also available)

The proximity sensor is activated by a finger or hand positioned at a distance of 2-4 cm from the button

The proximity sensor is activated by a finger or hand positioned at a distance of 2-4 cm from the button

White LED lighting

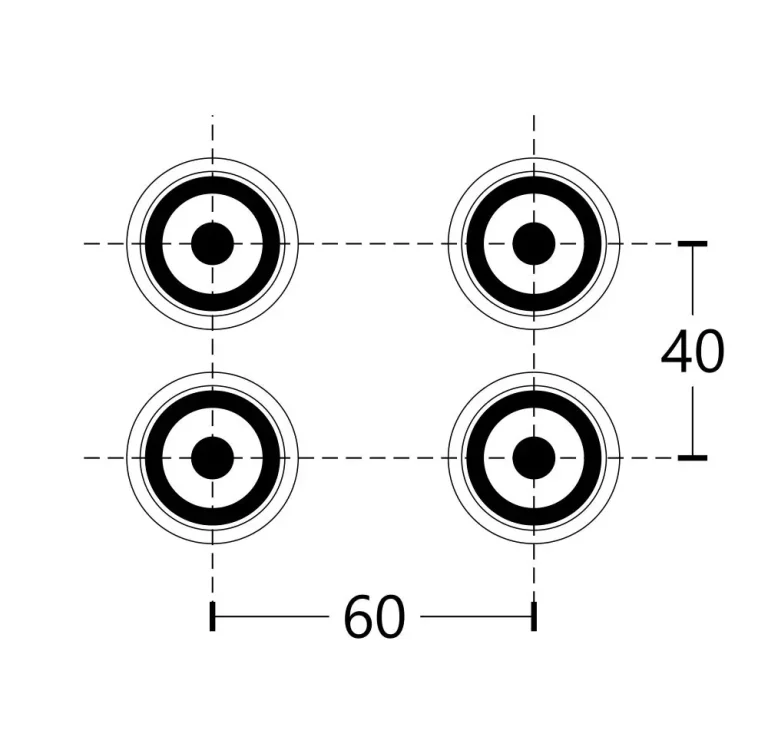

MOUNTING

The frontal mount version of the SHERMAN Touchless can be inserted in round-shaped 30mm cut outs.
Fastening by jam-nut.
Lockable thickness: 1÷4 mm (1÷3 mm main floor version)
Impact protection IK07 – Ingress protection IP44.

Touchless function is based on “IR reflective” technology.
To avoid simultaneous activation of more than one call, each button is connected to the one below by an unipolar link from EN.O to EN.I terminals.

SINGLE LIGHTING

When activated the button lights up white.
No illumination when not activated.

WHICH ELECTRONICS?

The Sherman Touchless can be matched to only one contact modules:

Wire terminals contact module
Single Lighting

electromechanical contact,
activate by pushing

proximity sensor,
activate by having your finger 2-4 cm from button
