TOUCH-TOUCHLESS
when design meets the elegance of glass
MURANO is our tempered glass panels series now featuring
DMG’s innovative TOUCH–TOUCHLESS button.
MURANO at a glance
→ Glass operating panels, style and innovation in BLACK, WHITE or ANY COLOR you wish
→ NEW ! I-DMG LOP WITH GLASS OR ST/STEEL FRONT PLATE
→ NEW ! TOUCH–TOUCHLESS BUTTONS
→ Immediate response, bright colors and Twin Light buttons (see below)
→ SAFE ! The Murano complies with the safety requirements for glass panels according to EN81-20
→ We use THERMALLY TEMPERED GLASS according to EN 12150
→ COP Long, COP Short and LOPs (several sizes)
→ Mounting either FLUSH or SURFACE
Our glass
IS ALWAYS SAFE!
All our glass panels are SAFE!
Our MURANO line complies with the safety requirements for glass panels according to EN81-20 and the glass we provide is according to EN 12150.
The EN81-20 standard is a crucial regulation in Europe that outlines safety rules for the construction and installation of elevators. Specifically, when it comes to glass used in elevators, this standard has specific requirements to ensure both safety and durability.
Floor panels
MURANO CLASSIC
SIMPLEX
90 x 250 mm (flush / surface H15 or H23)
90 x 320 mm (flush version for keys)
90 x 335 mm (surface version for keys)
DUPLEX
130 x 250 mm (flush / surface H15 or H23)
130 x 320 mm (flush version for keys)
130 x 335 mm (surface version for keys)
(NOTE): the LOP sizes are the same for white and black glass Murano panels.
WHITE color tempered glass (*)
BLACK color tempered glass (*)
(*) compliant to EN12150
Touch / Touchless buttons
Light signals series Touch /Touchless
Raffaello indicator 2.8"
Kaba Key Switch back mount (*)
Smart Key and Smart Key Plus (*)
(*) only to be mounted on metal add-on bottom plate
Flush
Surface
Wall mount
Opening/Closing through snapping system

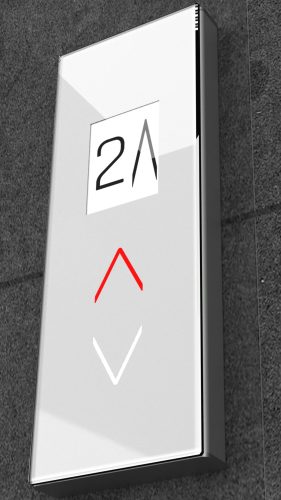

I-DMG TOUCH / TOUCHLESS
SIMPLEX
70 x 140mm flush and surface mount
slim depth (12mm)
standard (23mm)
rectangular profile with zamak frame
DUPLEX panels are not available for this model.
(NOTE): the LOP sizes are the same for white and black glass Murano panels.
WHITE color tempered glass (*)
BLACK color tempered glass (*)
(*) compliant to EN12150
Touch / Touchless buttons
Light signals series Touch /Touchless
Raffaello indicator 2.8"
Mounting options:
DOOR mounting (frame)
or
WALL mounting
(compatible with standard recessed electrical boxes - e.g. B-Ticino 504)
The new fastening system developed by DMG is also effective on non-planar surfaces, accommodating irregularities exceeding 1 mm (e.g., uneven walls or similar conditions).

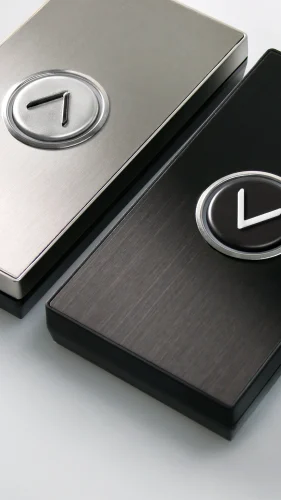

I-DMG MECHANICAL
SIMPLEX
70 x 140mm flush and surface mount
slim depth (12mm)
standard (23mm)
rectangular profile with zamak frame
DUPLEX panels are not available for this model.
(NOTE): the LOP sizes are the same for white and black glass Murano panels.
stainless steel
PVD black
Dardo S front mount buttons
Light signals series Dardo S
Raffaello indicator 2.8"
Dardo Key Switch
Smart Key and Smart Key Plus
Mounting options:
DOOR mounting (frame)
or
WALL mounting
(compatible with standard recessed electrical boxes - e.g. B-Ticino 504)
The new fastening system developed by DMG is also effective on non-planar surfaces, accommodating irregularities exceeding 1 mm (e.g., uneven walls or similar conditions).
CAR Panels
The FULL HEIGHT flush mounted version of the MURANO in white.
The mounting system is not only robust, but provides for the easiest and most efficient installation which can fit different depths of cabin walls thanks to the COP side adjusting elements. The top of the COP is provided with a locking system which opens 20 degrees from top to allow easy maintenance with no dismantling during the intervention.
Our MURANO COP panels are available in both FULL HEIGHT version or SHORT version.
The width of the panel is always 220mm.
The FULL HEIGHT version is 2115mm heigh, and is available for FLUSH or SURFACE mounting.
The SHORT version is available 1000mm high without key switches below, or 1095mm heigh with key switches below; again also this short version is available for both FLUSH or SURFACE mounting.
Here you see the TOUCHLESS BUTTON activated by the finger proximity to the floor number.
The stand-by illumination is WHITE. When activated the button illumination TURNS RED and a CALL ACKNOWLEDGE SOUND is produced.
Touchless buttons help to maintain a cleaner and safer environment for elevator users and reduce the risk of transmitting germs and viruses since users don’t need to physically touch the buttons. This is particularly important in shared spaces like elevators where multiple people come into contact with the buttons throughout the day.
Surface or Flush mounting

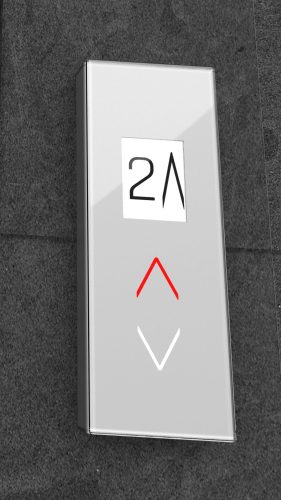

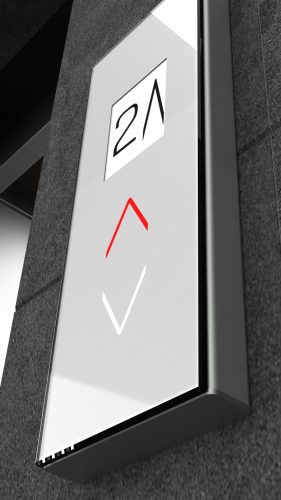

SURFACE
MOUNTING
FLOOR panels are available in H15mm (no indicator) or H23mm versions

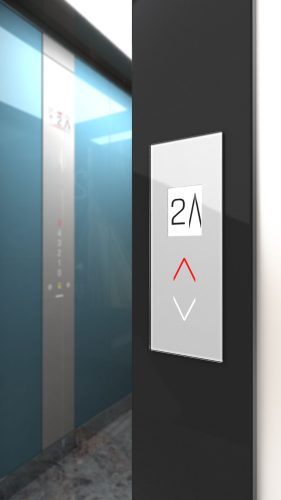

FLUSH
MOUNTING
FLOOR panels are available for door frame mounting or wall (with back box).
