FLAT FACEPLATES
when minimal means elegant
FLAT FACEPLATES come in many different sizes,
materials and finishes.
The ARTE top/bottom profiles are available
as a custom option for all plates.
FLAT FACEPLATES at a glance
- Great choice of AVAILABLE SIZES

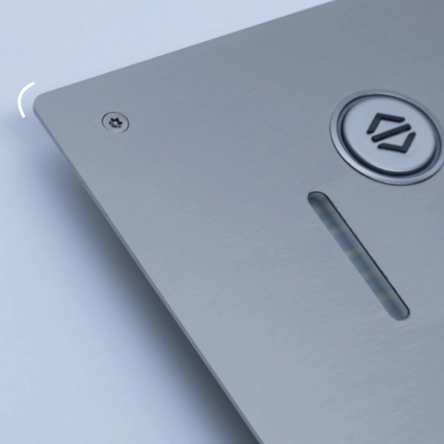

- Softly ROUNDED CORNERS for an enhanced elegant touch
- 1.5 / 2 / 3mm thickness
- 6 different FINISHES
- 5 ARTE profiles for top and bottom endings
- HINGE OPENING available (restrictions apply, please read below)
DETAILS THAT MAKE A DIFFERENCE
MATERIALS & FINISHES
Standard stainless steel finishes include:

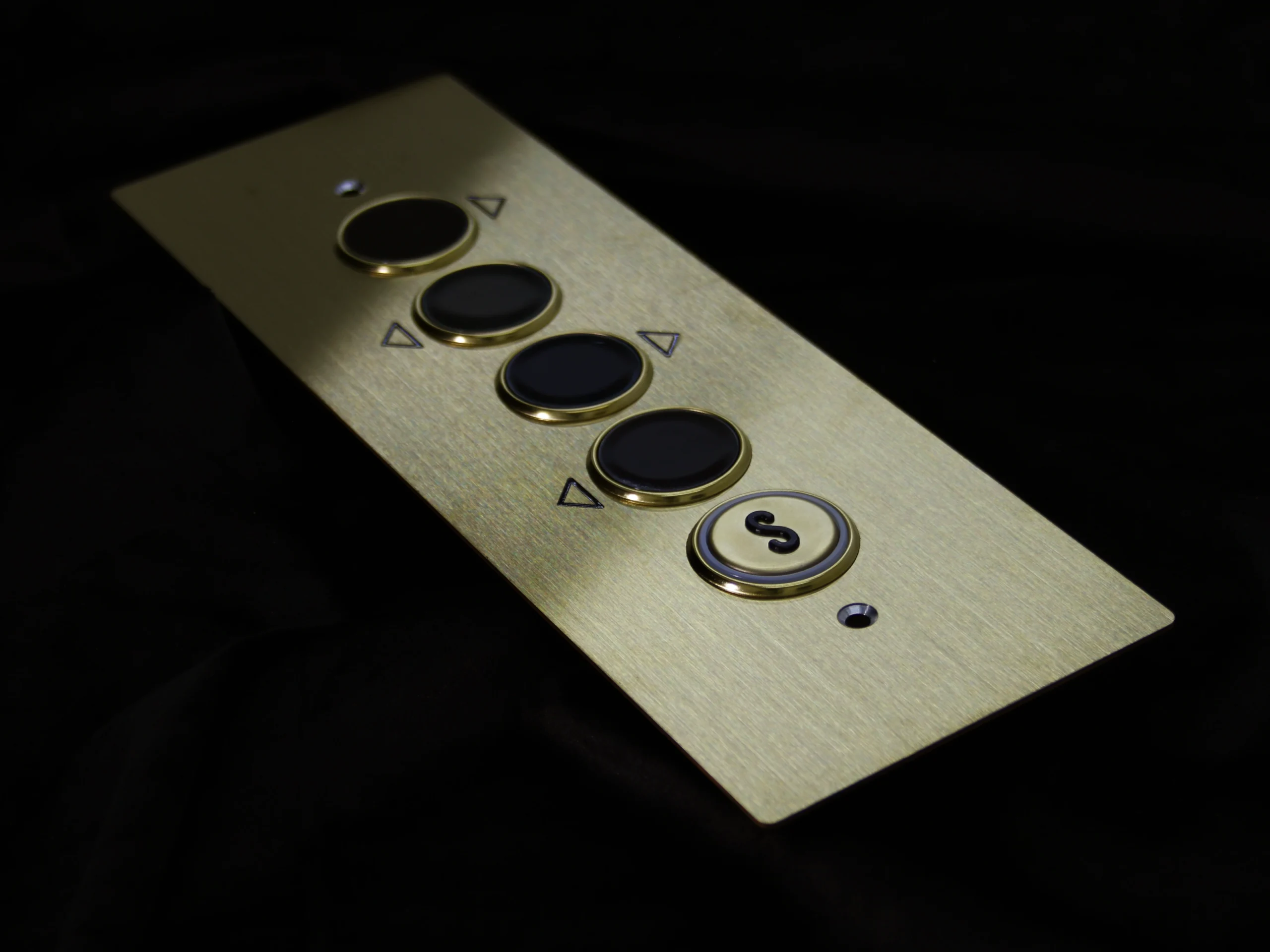

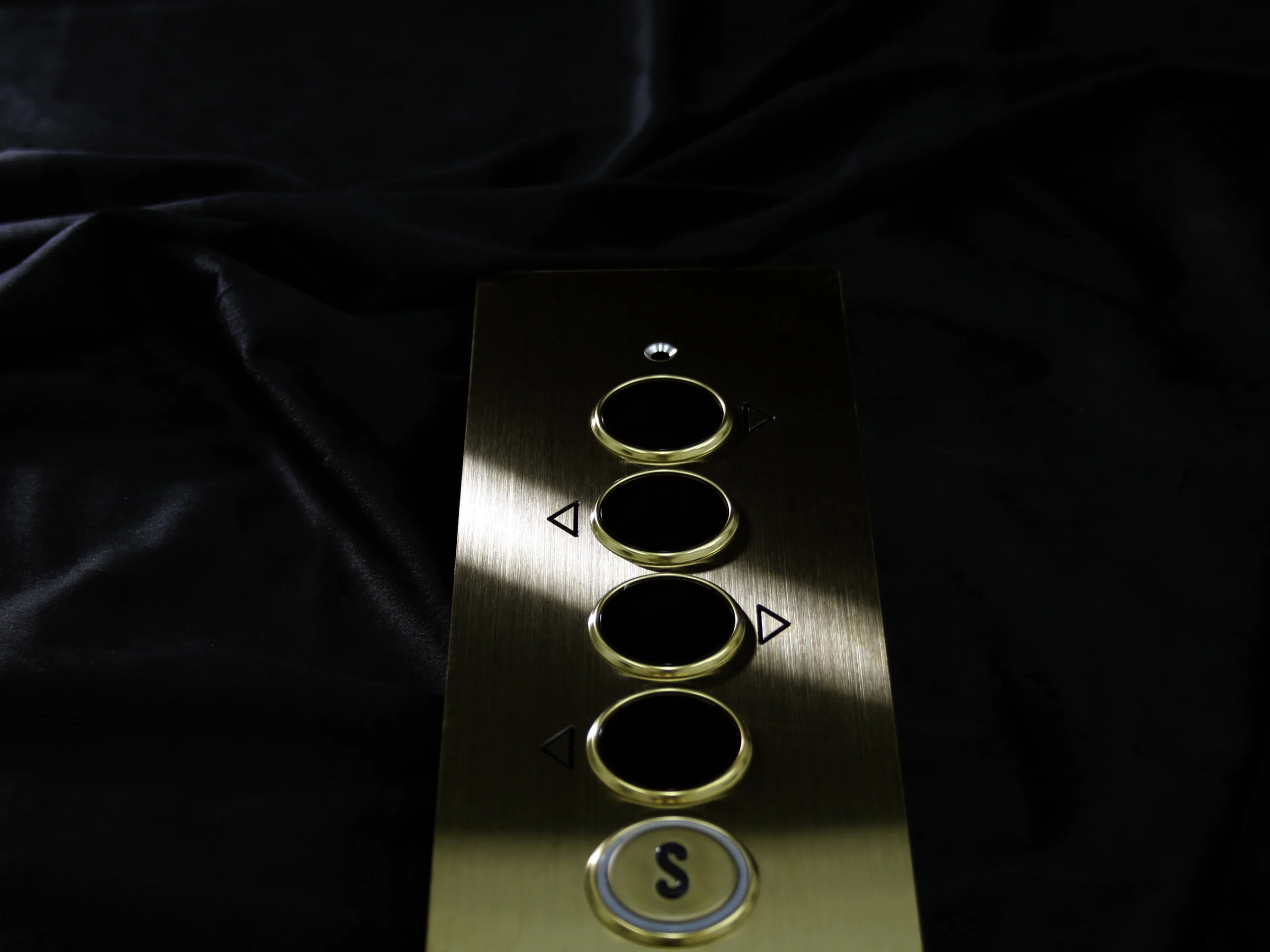

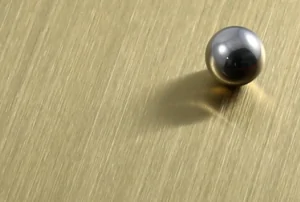

G320, Scotch Brite, Mirror, Linen, Brushed PVD gold (Titanium nitride-treated st/steel),

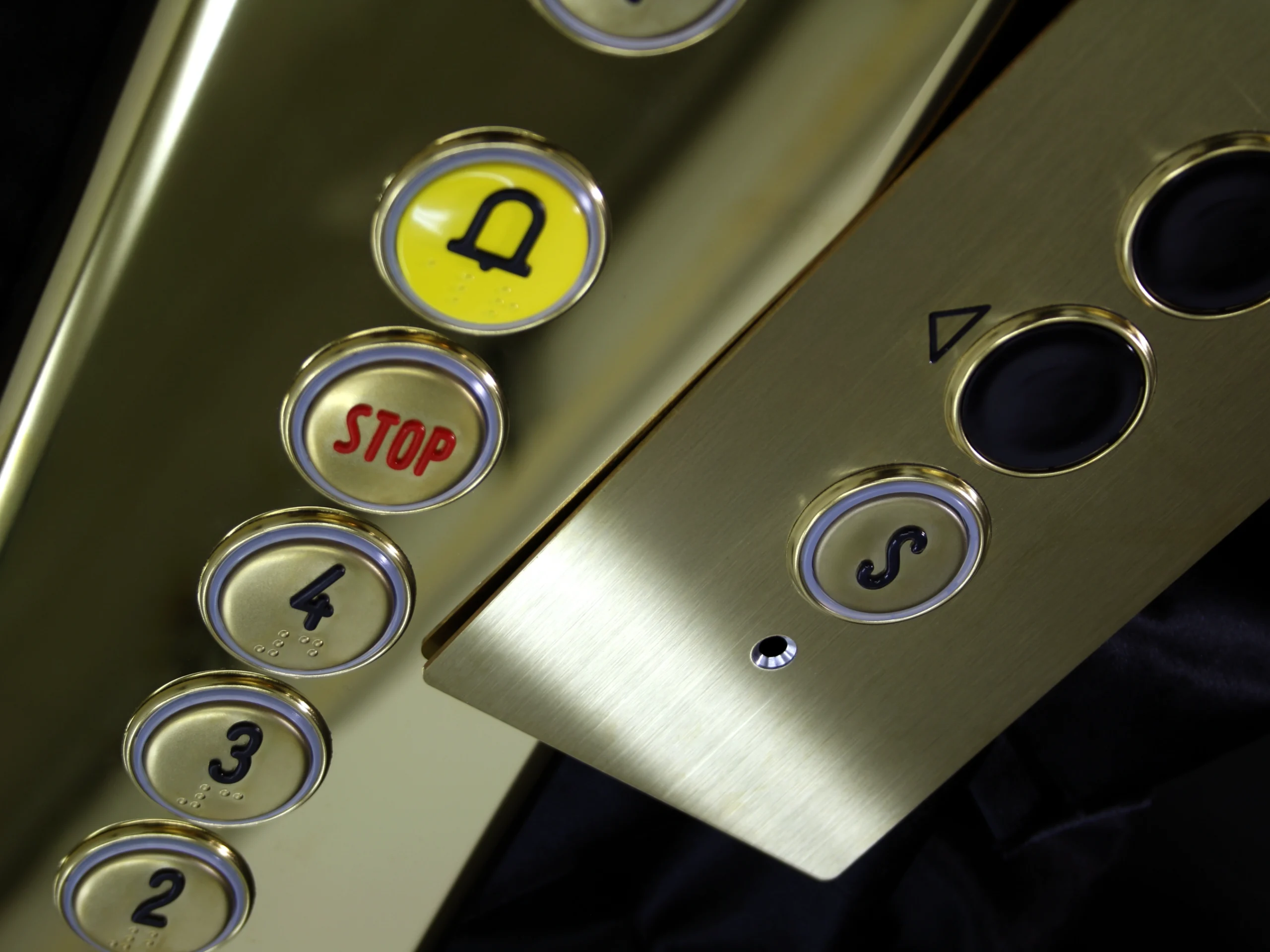

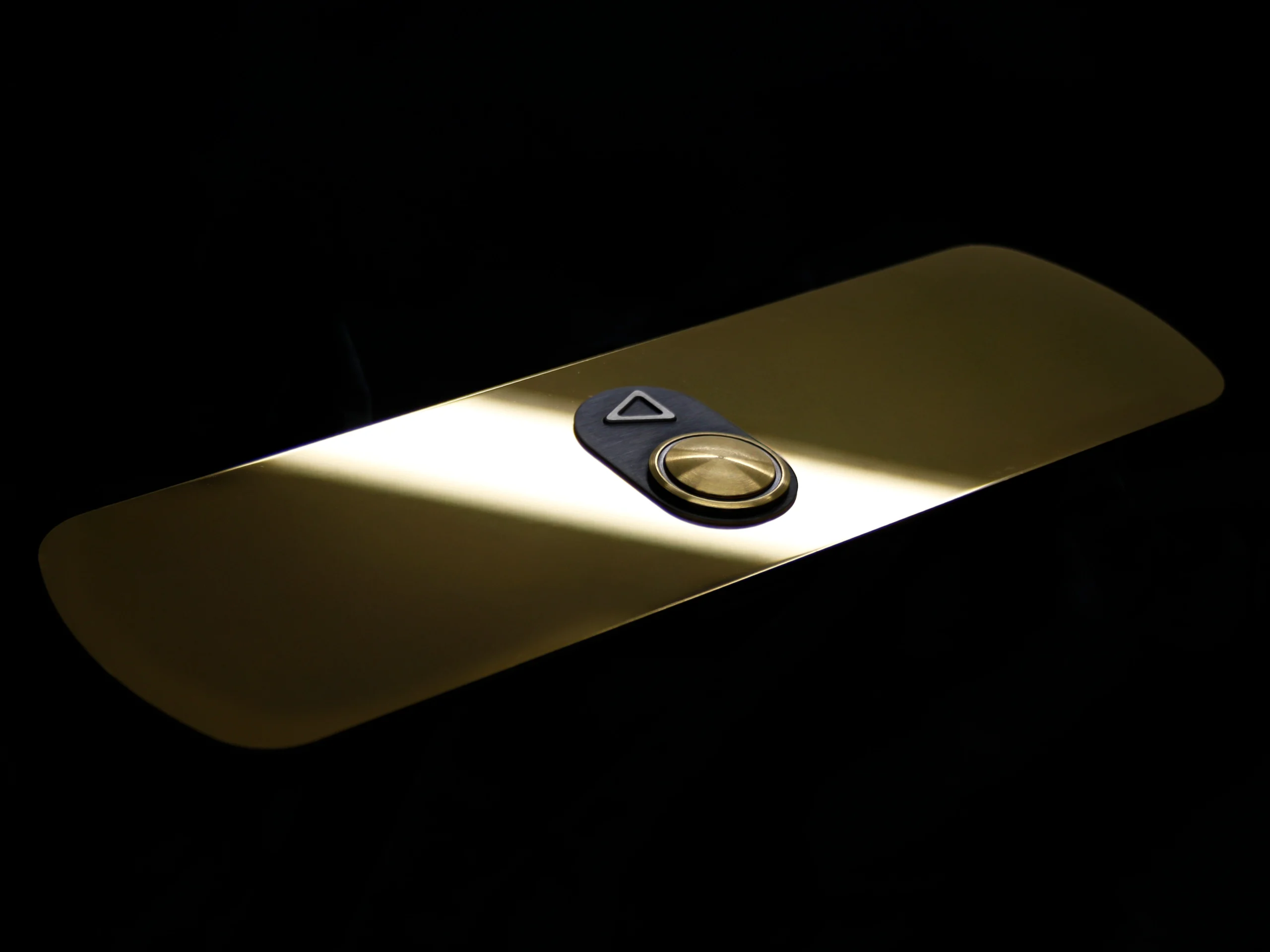

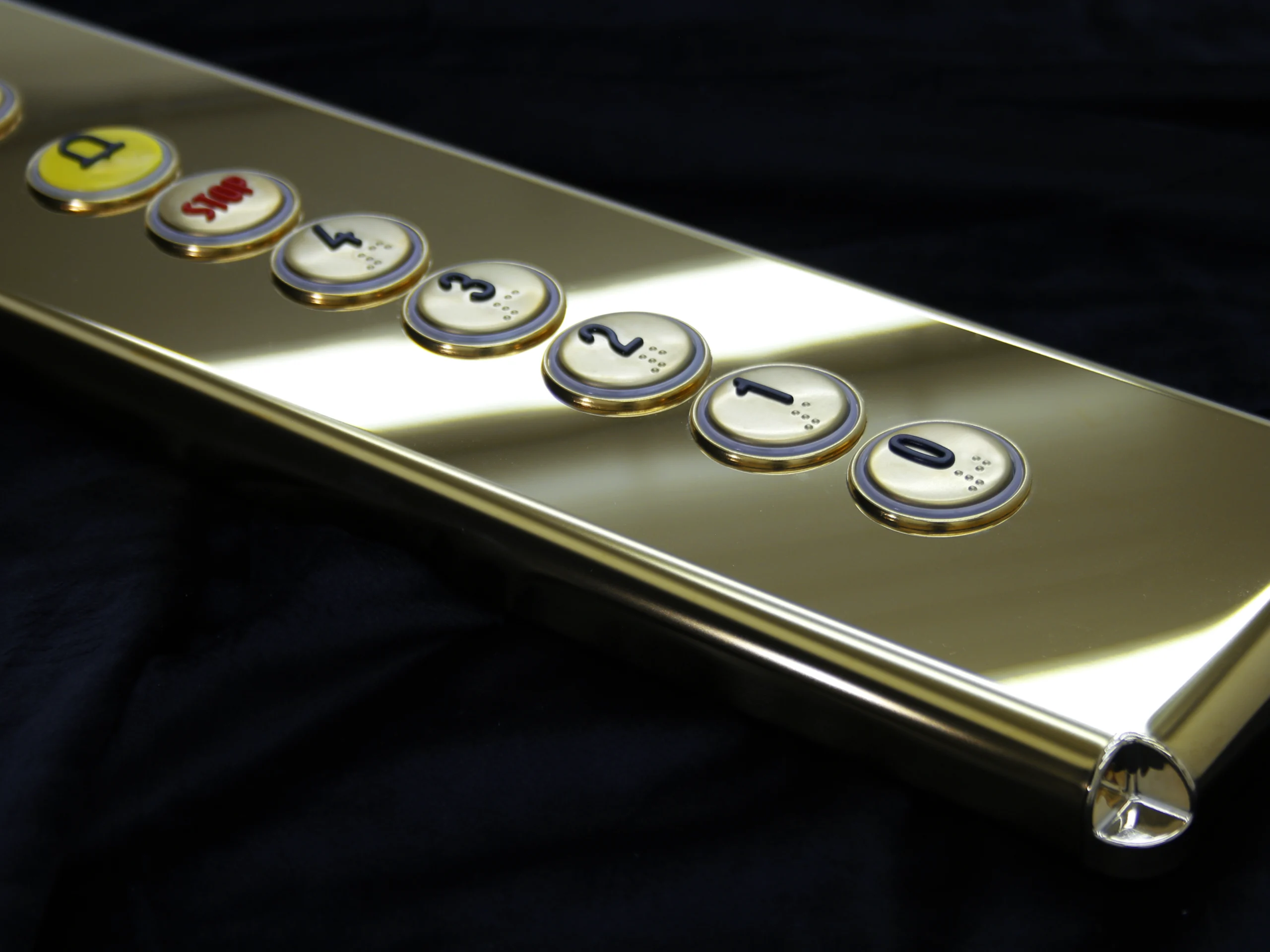

Polished PVD gold (Titanium nitride-treated st/steel)
Special finishes are available on demand.

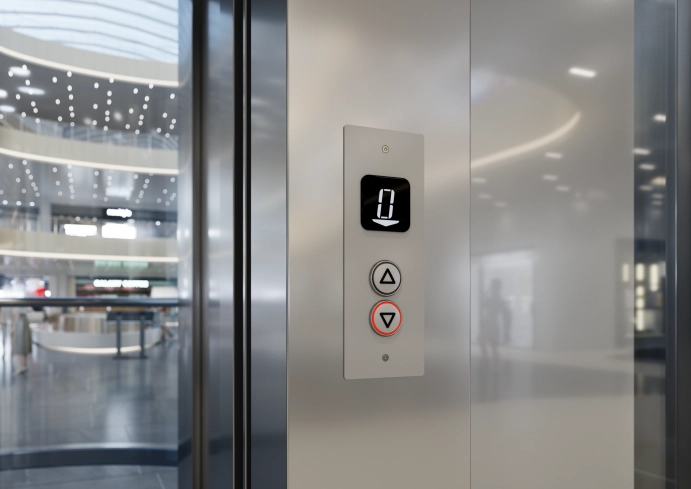

FLOOR PANELS
Thickness
provided in 1,5 / 2mm or 3mm thickness
LOP plates WxH (width x height) all sizes in mm
60 x 150/200/250/300/350 (back box as option)
75 x 200/250/300/350 (no back box)
80 x 150/200/250/300/350/400/500 (back box as option)
90 x 200/250/300/350/400/500/600 (back box as option)
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1500 in steps of 100mm (back box as option with or without hinge opening)
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
provided in 1,5 / 2mm or 3mm thickness
LOP plates WxH (width x height) all sizes in mm
60 x 150/200/250/300/350 (back box as option)
75 x 200/250/300/350 (no back box)
80 x 150/200/250/300/350/400/500 (back box as option)
90 x 200/250/300/350/400/500/600 (back box as option)
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1500 in steps of 100mm (back box as option with or without hinge opening)
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
LOP plates WxH (width x height) • the following sizes apply to all profiles
90 x 200/250/300/350/400/500/600 (back box as option)
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1400 in steps of 100mm (back box as option with or without hinge opening)
all sizes in mm
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
90 x 200/250/300/350/400/500/600 (back box as option)
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1400 in steps of 100mm (back box as option with or without hinge opening)
all sizes in mm
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
All our flat faceplates can be ordered with the following fixing methods:
→ Phillips screws

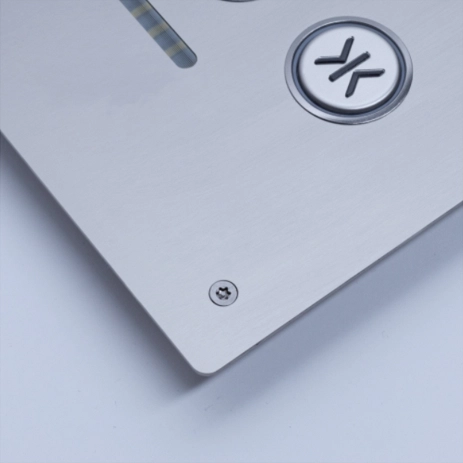

→ Torx screws

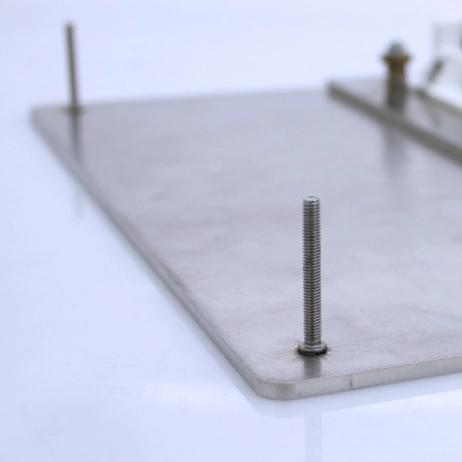

→ Welded studs
→ Phillips screws
→ Torx screws
→ Welded studs
All DMG components fit the flat faceplates.
Browse the VISUAL & MEDIA section from the top menu, or visit the COMPONENTS section to explore the available options.
Browse the VISUAL & MEDIA section from the top menu, or visit the COMPONENTS section to explore the available options.
We engrave flat plates using LASER or PANTOGRAPH techniques – decorations can include your LOGO or PERSONALIZED MESSAGES.

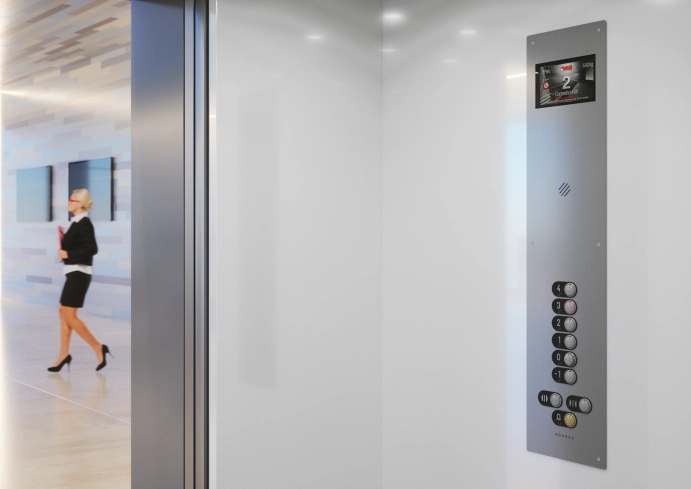

CAR PANELS
COP plates are available in 2 and 3mm thickness
COP plates WxH (width x height)all sizes in mm
small widths are available - check the FLOOR PANELS section above.
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1500 in steps of 100mm (back box as option with or without hinge opening)
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
COP plates WxH (width x height)all sizes in mm
small widths are available - check the FLOOR PANELS section above.
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1500 in steps of 100mm (back box as option with or without hinge opening)
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
COP plates WxH (width x height) • the following sizes apply to all profiles
A smaller width is also available - check the available sizes for Arte plates in the FLOOR PANELS section above.
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1400 in steps of 100mm (back box as option with or without hinge opening)
all sizes in mm
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
A smaller width is also available - check the available sizes for Arte plates in the FLOOR PANELS section above.
130 x 350/400-1200 in steps of 100mm (back box as option)
180 x 400-1200 in steps of 100mm (back box as option with or without hinge opening)
220 x 400-1400 in steps of 100mm (back box as option with or without hinge opening)
all sizes in mm
LIP plates HxW (height x width)
same sizes as above, but the plate is for horizontal use
All our flat faceplates can be ordered with the following fixing methods:
→ Phillips screws
→ Torx screws
→ Welded studs
→ Phillips screws
→ Torx screws
→ Welded studs
All DMG components fit the flat faceplates.
Browse the VISUAL & MEDIA section from the top menu, or visit the COMPONENTS section to explore the available options.
Browse the VISUAL & MEDIA section from the top menu, or visit the COMPONENTS section to explore the available options.
We engrave flat plates using LASER or PANTOGRAPH techniques – decorations can include your LOGO or PERSONALIZED MESSAGES.
FLAT FACEPLATES GALLERY

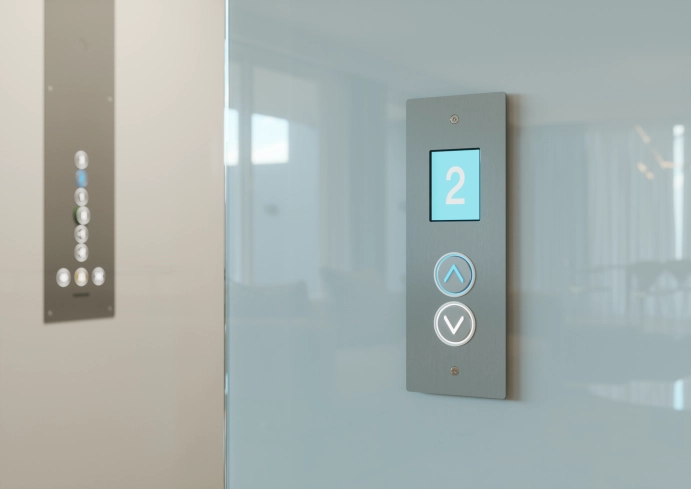

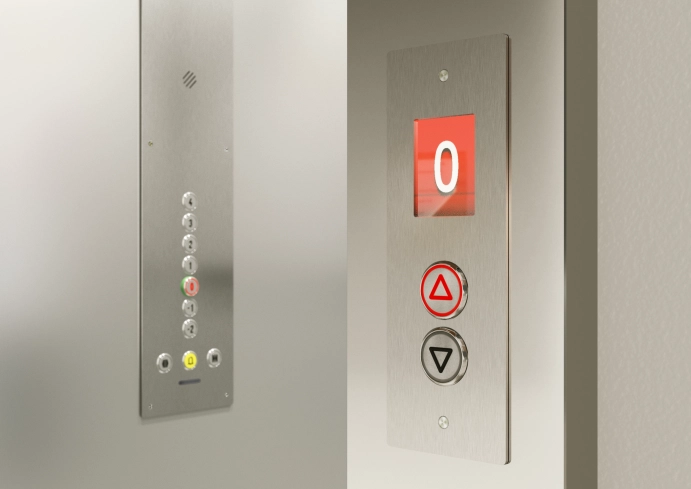

FLAT FACEPLATES mean minimal, timeless design, flush to the wall;
the perfect balance between clean shapes and robustness.
The sophisticated minimalism of the neutral steel surface
is interrupted by the beauty of our push buttons,
whether protruding from the surface or flush with it.
the perfect balance between clean shapes and robustness.
The sophisticated minimalism of the neutral steel surface
is interrupted by the beauty of our push buttons,
whether protruding from the surface or flush with it.
ARTE SHAPED PROFILES
Flat faceplate may come either with flat profiles or shaped according to one of the 5 ARTE profiles.
Saint Peter, Venice, Colisseum, Pantheon or Navona offer a great choice for an appealing design to the flat plates.
Simple never means ordinary to us.
ARTE profiles give flat faceplates a young look!
A CLOSER LOOK
